Klaricell RJ®

Compact water polishing unit combining clarification and filtration

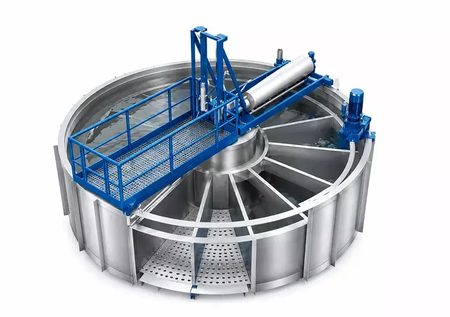

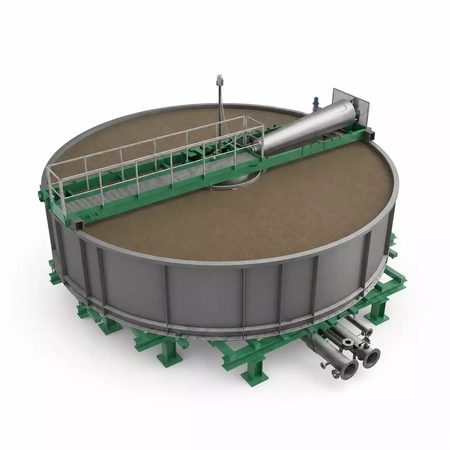

Klaricell RJ® is a water treatment unit that combines dissolved air flotation (DAF) and filtration in a single vessel and is designed to achieve high treated-water quality.

How it works

The unit combines coagulation, dissolved air flotation and filtration through a dual-media bed. The water is treated in a single vessel, which shortens treatment time and simplifies operation.

Advantages

• Treatment time of 8–10 minutes
• Three treatment stages in a single vessel
• Inlet suspended solids up to 150 mg/l
• No additional tanks or backwash water tanks

Applications

• Treatment of surface water and groundwater to drinking water quality
• Process water treatment
• Water recycling systems
• Removal of heavy metals: Cd, Ni, etc.
• Polishing after biological treatment to the maximum permissible concentrations (MPC) for fishery waters

Sizes and capacity

Klaricell RJ® is available in 11 sizes with capacities from 120 to 1480 m³/h.
